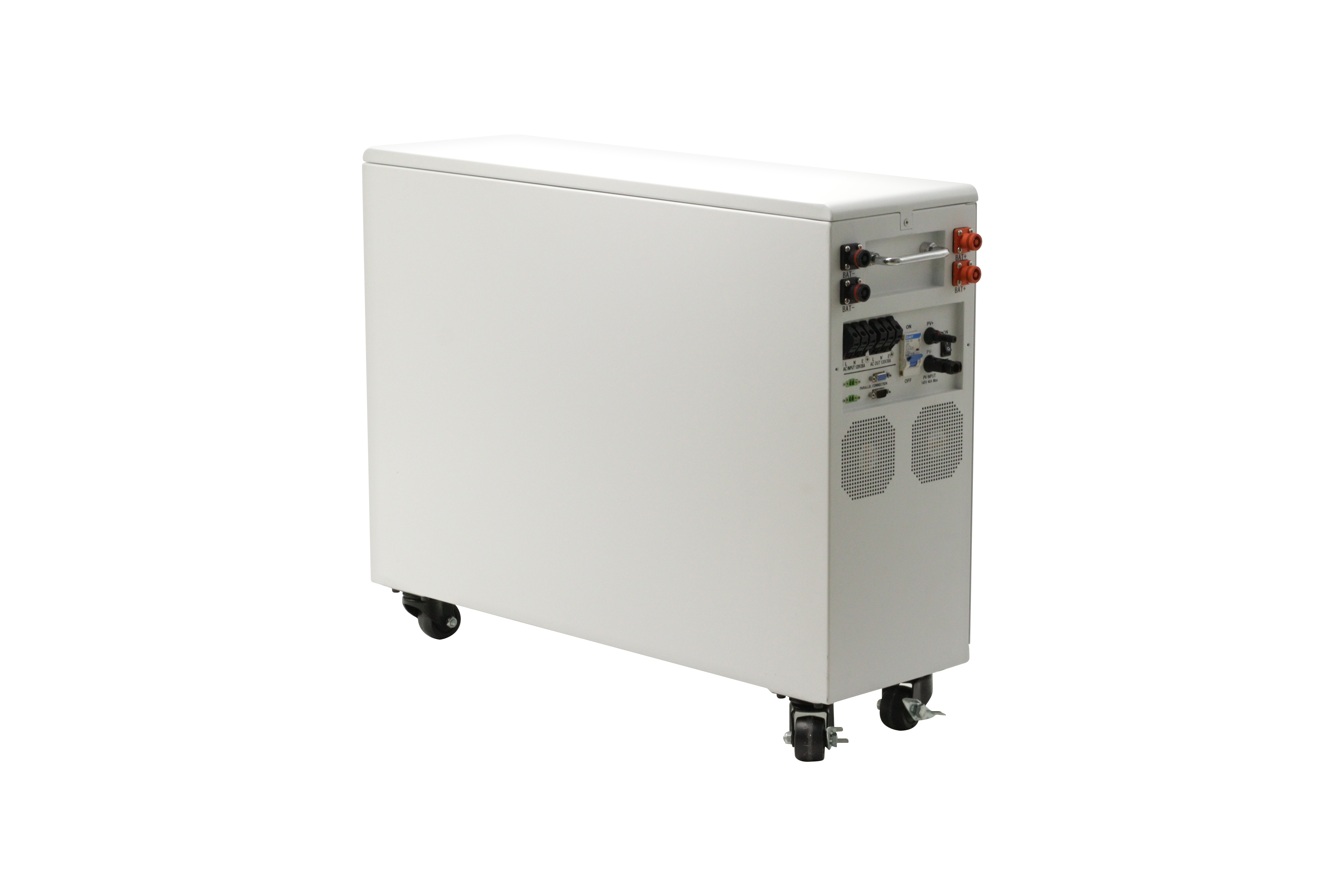

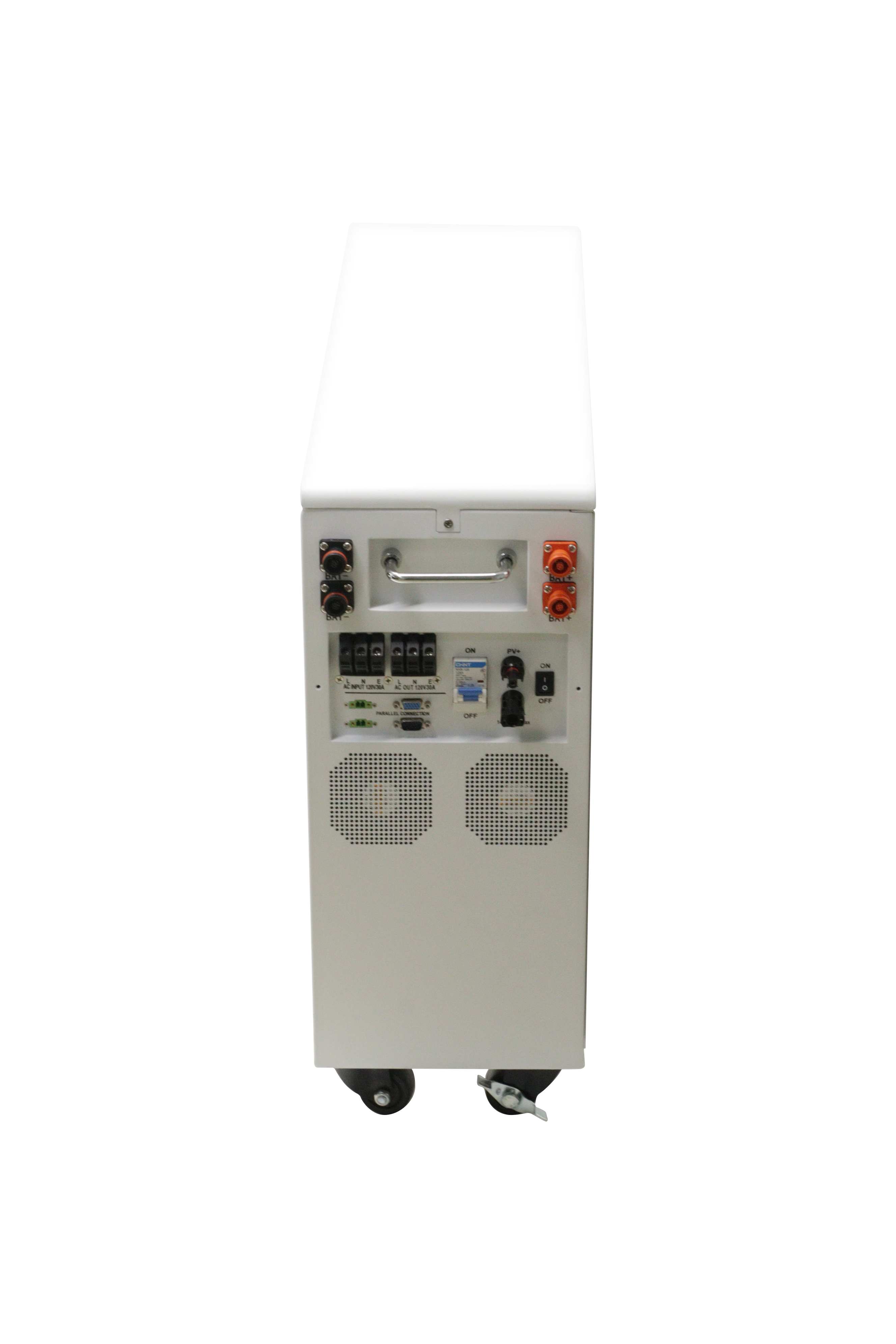

5KWh All-in one Energy Storage System
Nominal Voltage
51.2V
Nominal Capacity
100 Ah
Capacity @ 10A
300 min
Resistance
≤30 mΩ @ 50% SOC
Efficiency
99%
Self Discharge
<3% per Month
Cycle Life
2000 times DOD100% (0.33C)
Maximum Continuous Discharge Current
100 A
Peak Discharge Current
120 A (10 s)
BMS Discharge Current Cut-Off
350A (320m s)
Recommended Low Voltage Disconnect
43.2 V
BMS Discharge Voltage Cut-Off
40 V (2.5 ±0.08 vpc) (1s)
Reconnect Voltage
43.2 V (2.7 ±0.1 vpc)
Short Circuit Protection
200-600 μs
