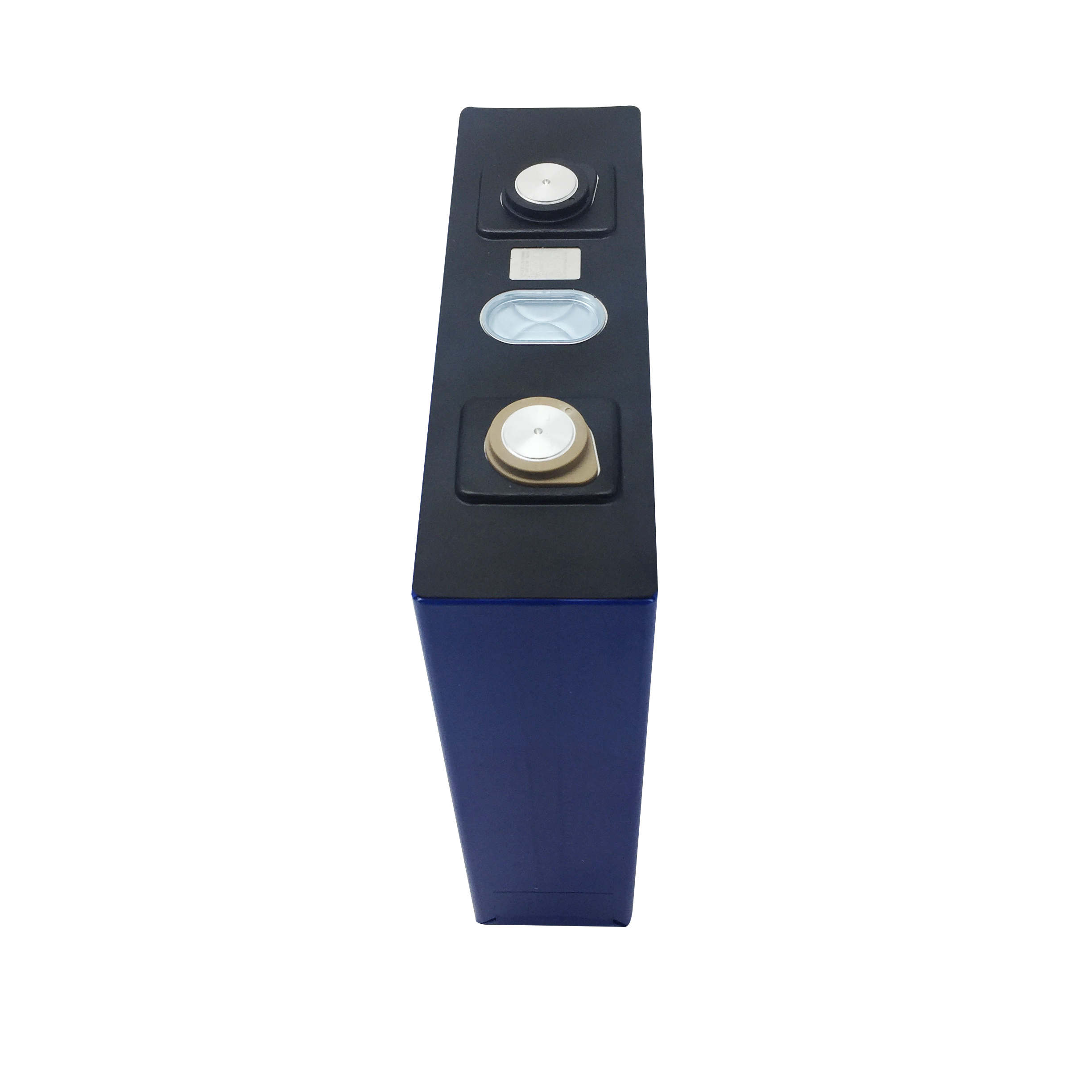

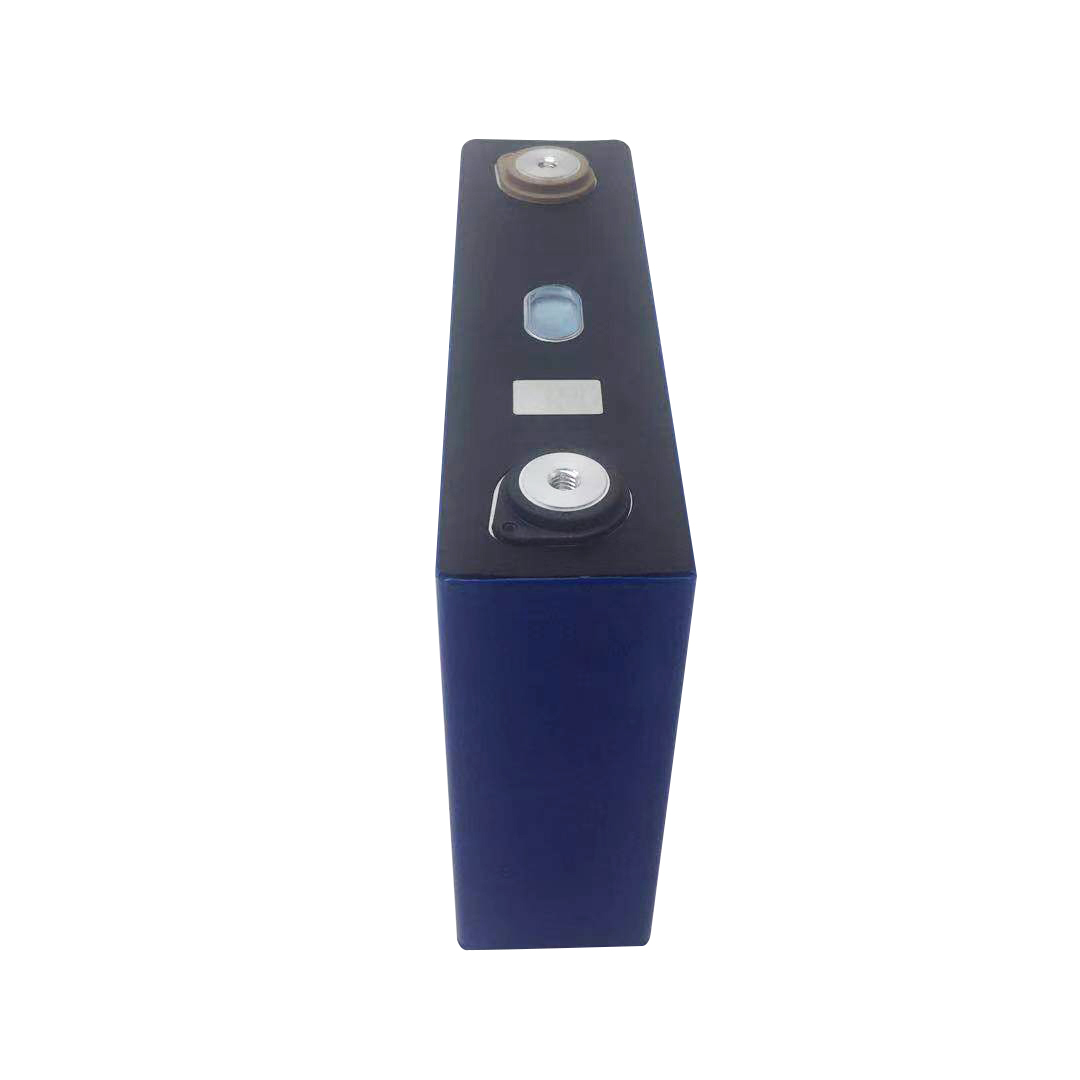

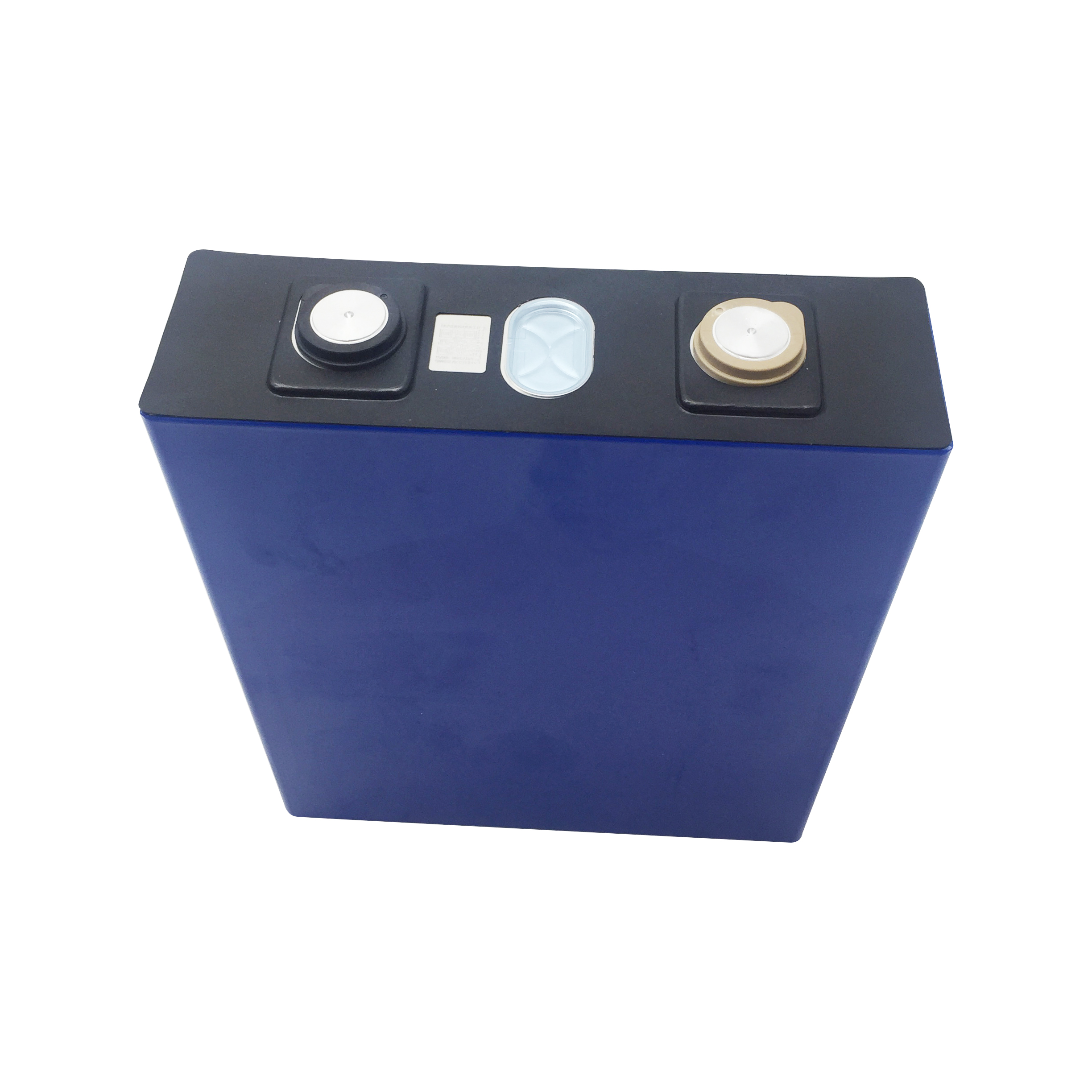

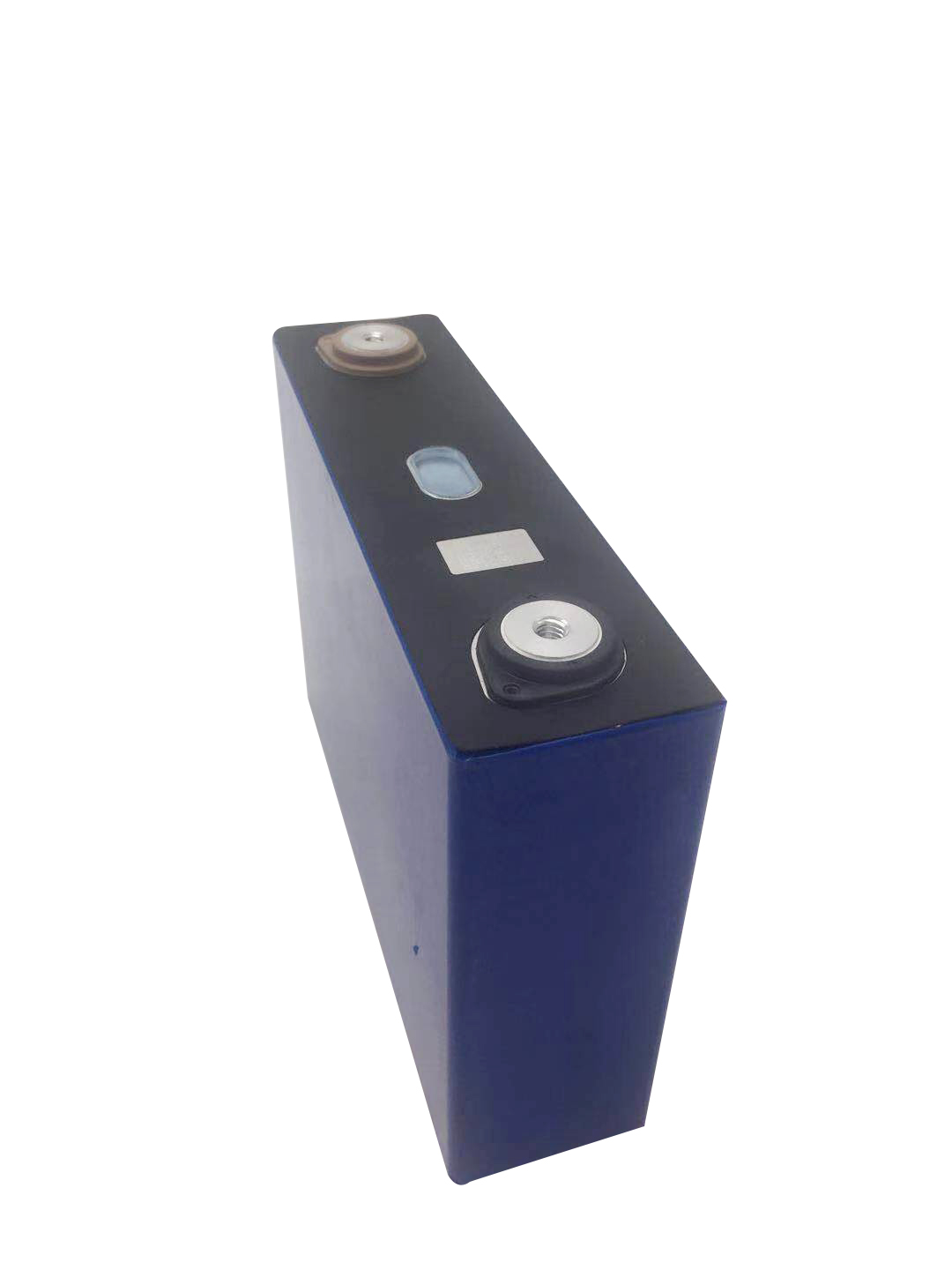

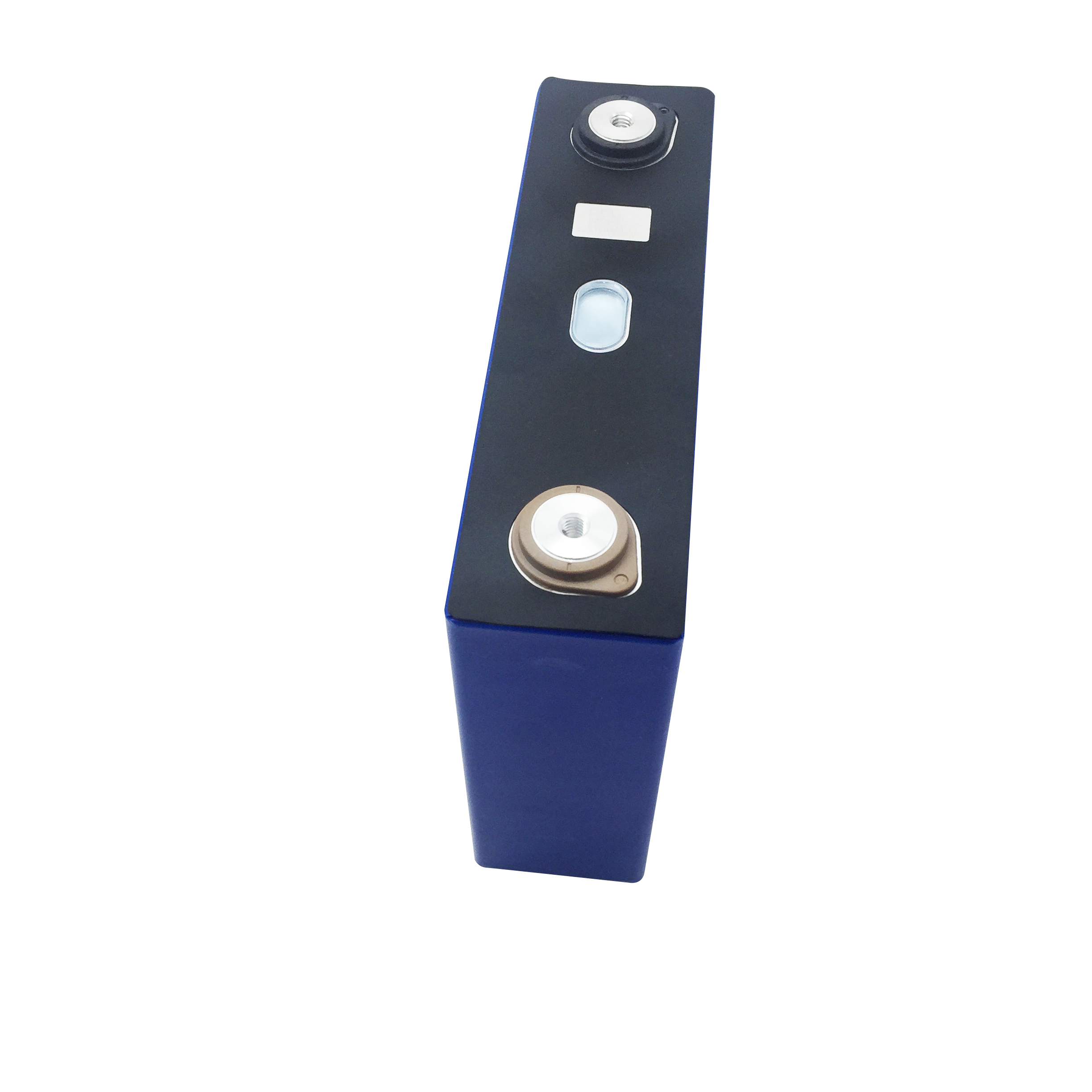

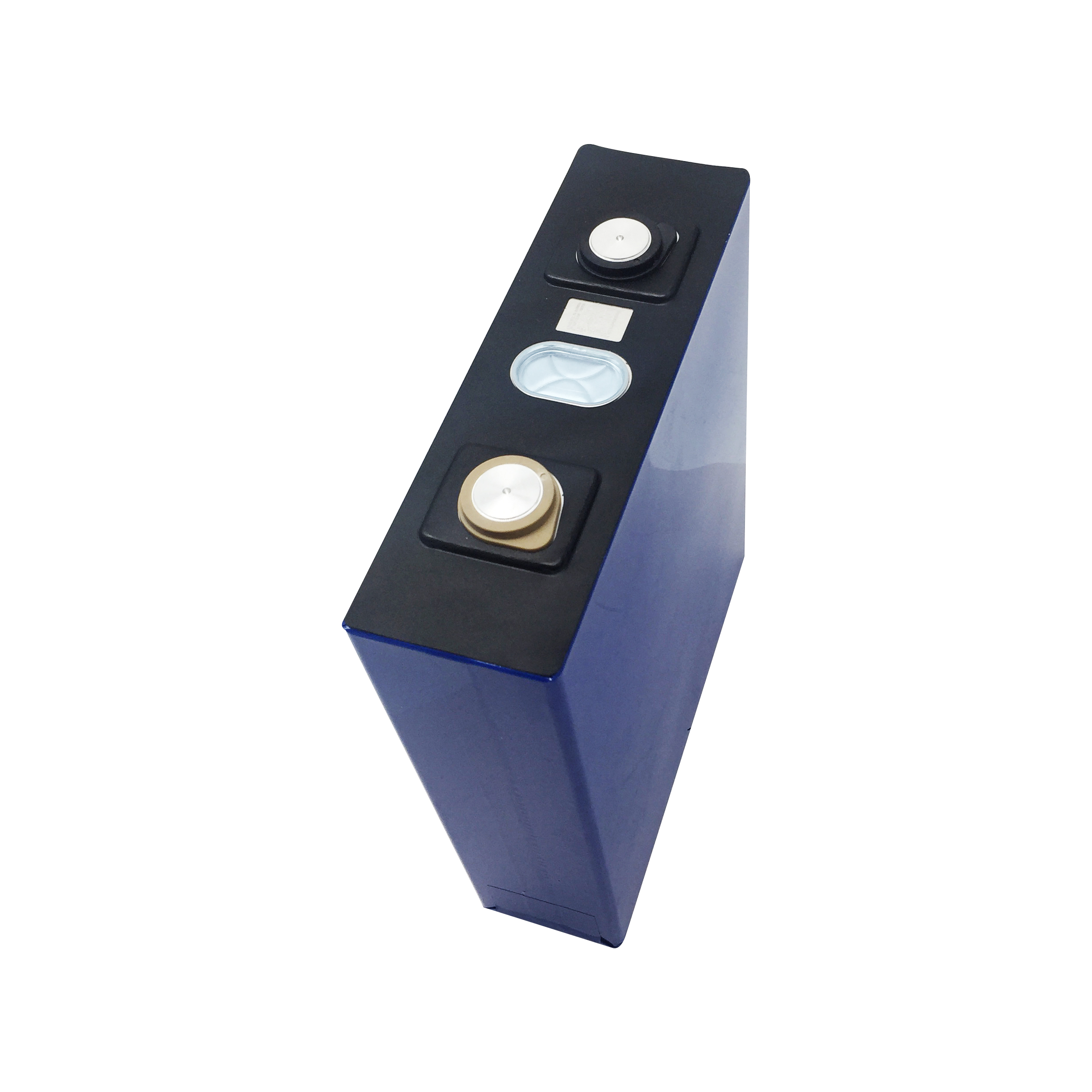

3.2V 100Ah lithium iron phosphate battery cell for sale
High quality,Deep cycle life,2000 cycle life,12months warranty
1/3 Weight
8X Cycle Life
Nominal Voltage
3.2V
Nominal Capacity
100Ah
Energy
320Wh
Charge Voltage
3.65V
Discharge cut off Voltage
20V+-0.5V
Standard charge current
0.2C
Maximum charge current (continuous)
1C
Standard discharge current
0.2C
Maximum discharge current (continuous)
1C
Maximum discharge current (long pulse)
2C
Maximum discharge current (short pulse)
3C
Standard discharge temperature
25±2℃
Absolute discharge temperature （Cell temperature）
-20~60℃
Impedance (1KHz)
≤0.80mΩ
Shipping capacity
3~30%SOC
Operating temperature (charging)
0~60℃
Operating temperature (discharge)
-20~60℃
Weight
≤2.40Kg
Self-discharge
≤4.5%/month
Cell dimension
48*173*125mm
