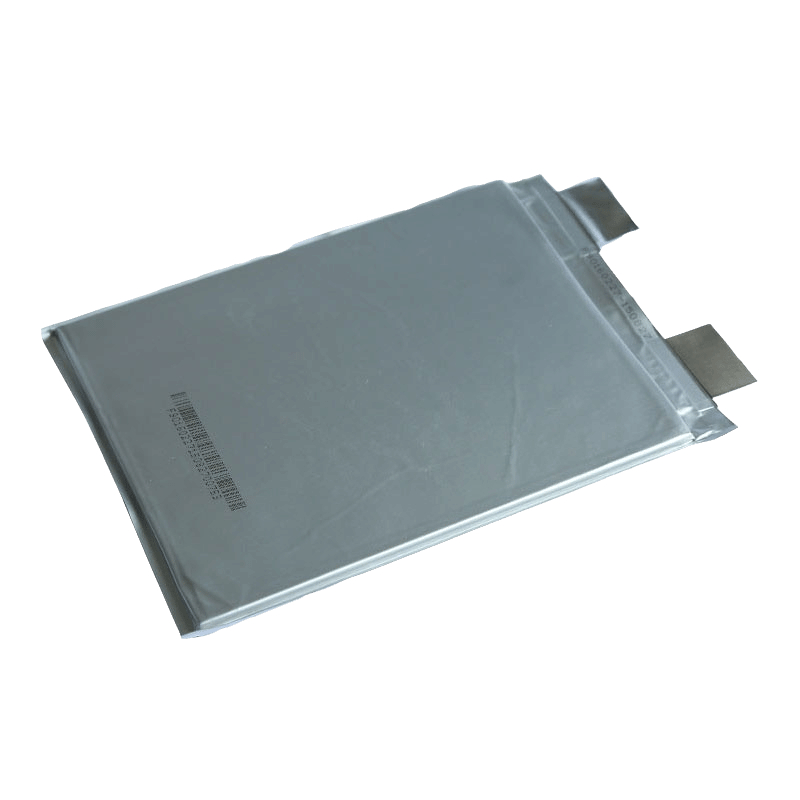

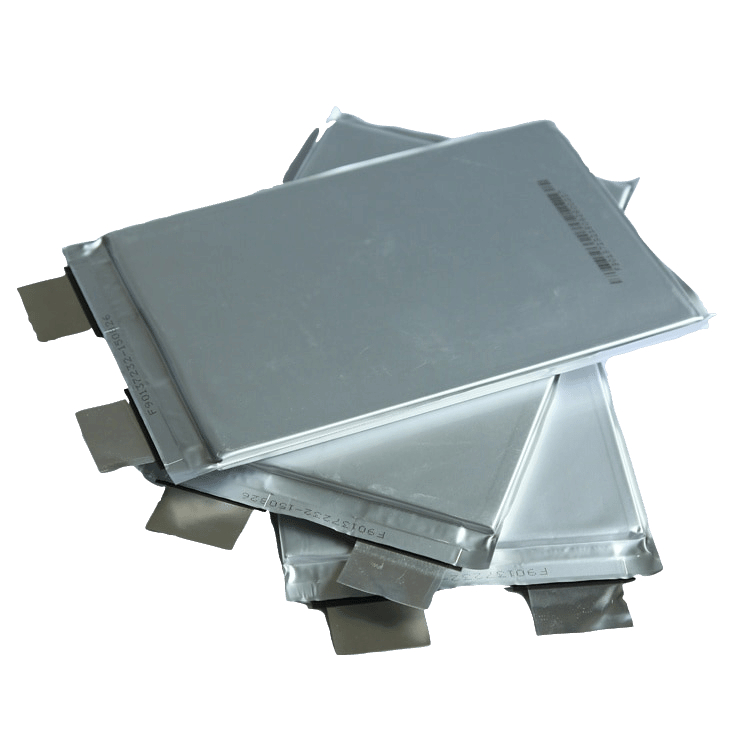

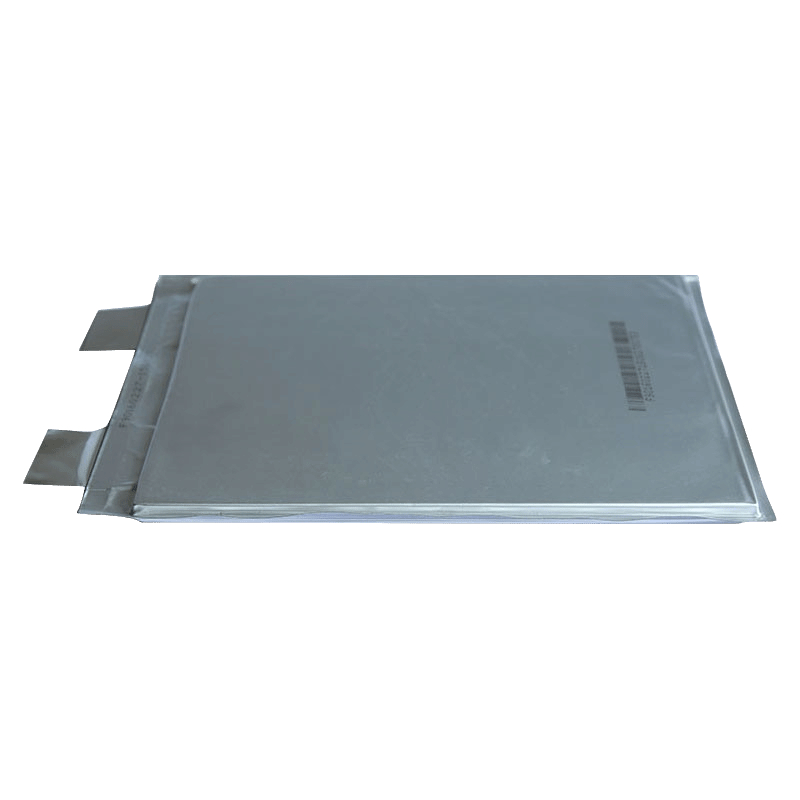

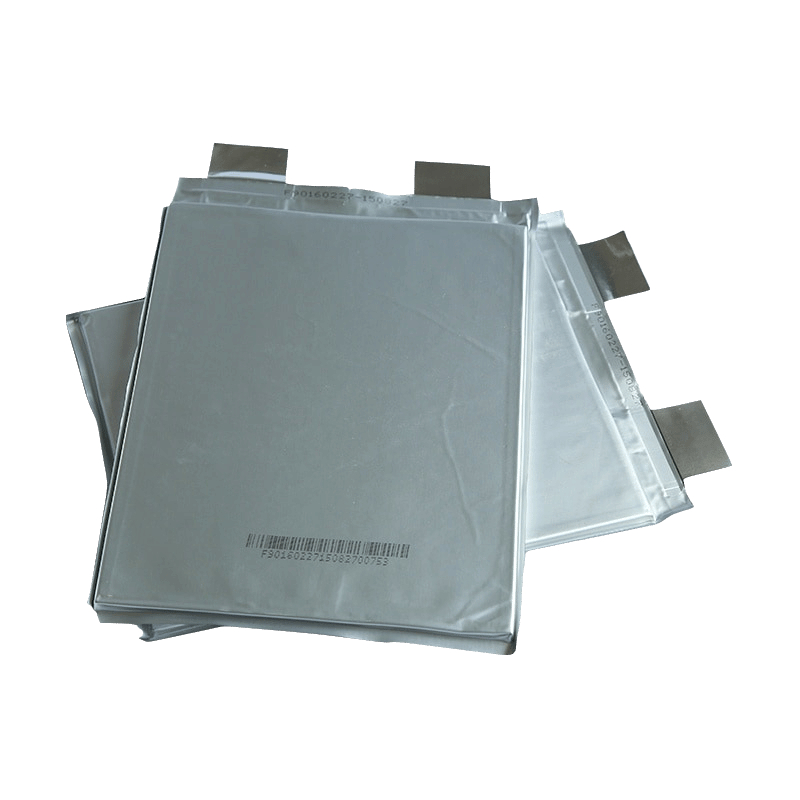

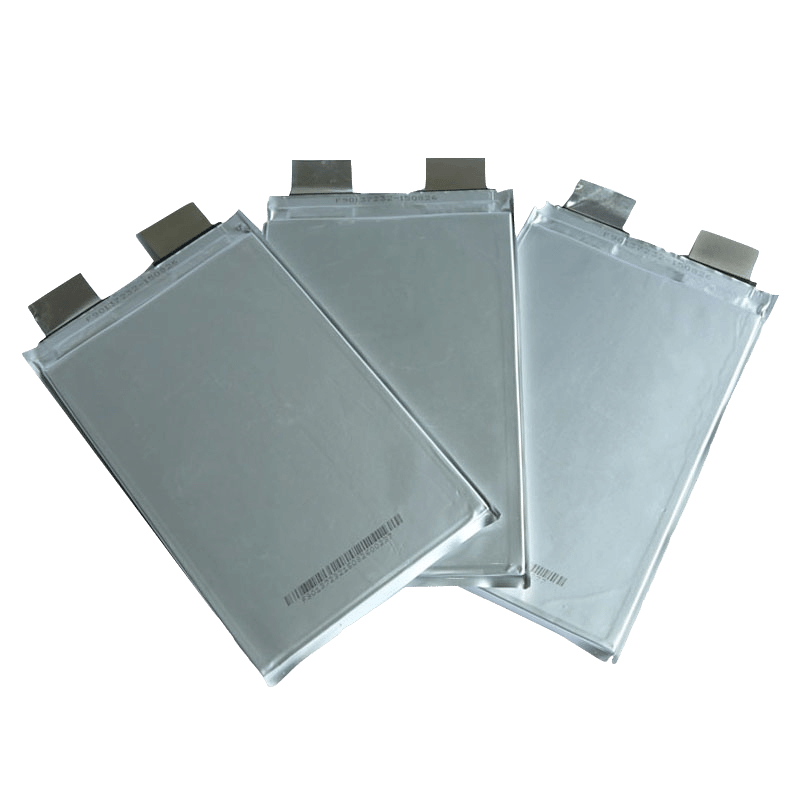

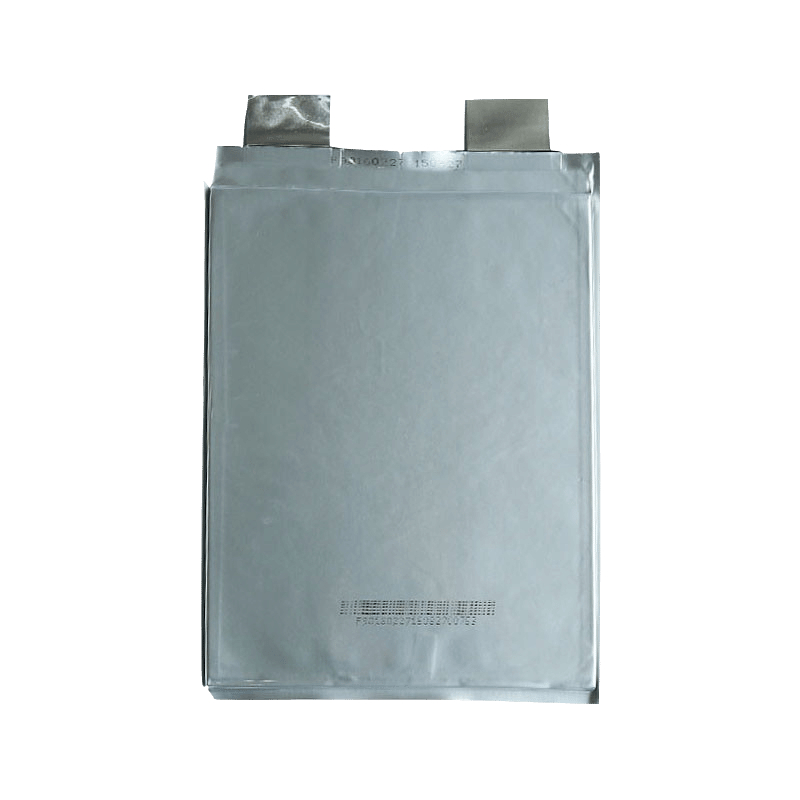

3.2V 50Ah pouch cells lithium iron phosphate battery cells
High quality,Deep cycle life,2000 cycle life,12months warranty
Nominal voltage
3.2V
Nominal Capacity
50Ah
Energy
160Wh
Charge Voltage
3.65V
Discharge cut off Voltage
20V+-0.5V
Standard charge current
0.2C
Maximum charge current (continuous)
1C
Standard discharge current
0.2C
Maximum discharge current (continuous)
1C
Maximum discharge current (long pulse)
2C
Maximum discharge current (short pulse)
2.5C
Standard discharge temperature
25±2℃
Absolute discharge temperature （Cell temperature）
-20~60℃
Impedance (1KHz)
≤0.80mΩ
Shipping capacity
3~30%SOC
Operating temperature (charging)
0~60℃
Operating temperature (discharge)
-20~60℃
Weight
≤1Kg
Self-discharge
≤3.5%/month
Cell dimension
11*165*260mm
